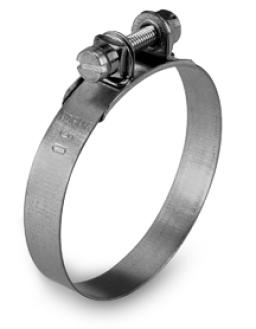

S Clamp

DIN 3016/3017

Handles extreme pressure & tensile loads. Especially suitable for use in commercial vehicles.

 S Clamp
  • Description
  • Features
  • Versions
  • Sizes
  • Downloads

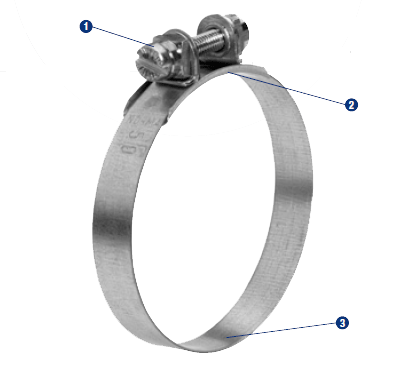

S Clamp Overview

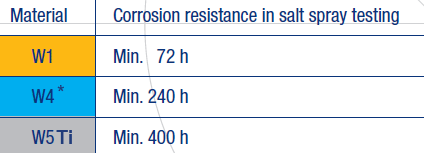

S Corrosion Resistance


S Material
* For band width 30mm on demand

Available in Zinc Plated & Stainless steel

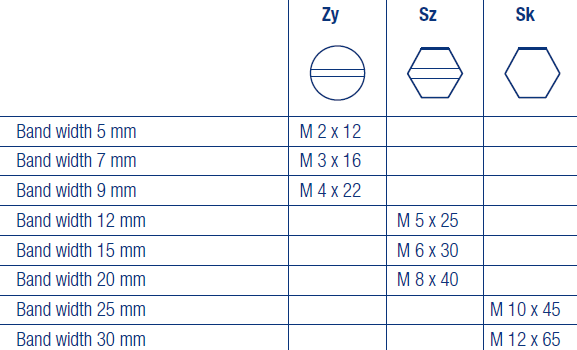

S Screws
Bolt Types

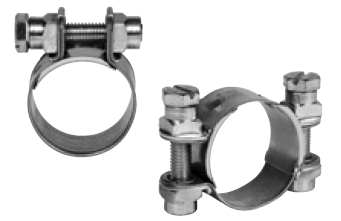

S Clamp Type1

S

Sealing for rubber & plastic hoses where high clamping force is needed.

Also available in 2-Part

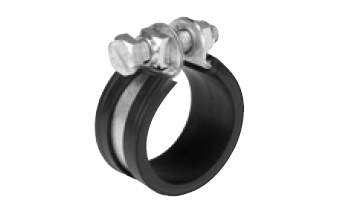

S Clamp Type2

SPGU

With EPDM Rubber Profile
From 9mm width


S Clamp

Band width
(mm)		Min. ΓΈ
(mm)		Material thickness (mm)ScrewPDArticle Group
W1W5TypeSize
550,2-ZyM 2x12-100
760,40,4ZyM 3x160,6110
990,40,4ZyM 4x221,5120
12120,50,5SzM 5x251,8130
15200,60,6SzM 6x304,8140
20251,00,8SzM 8x4014,5150
25501,251,0SkM 10x4536160
30802,5-SkM 12x6584180

S Clamp Brochure Download
